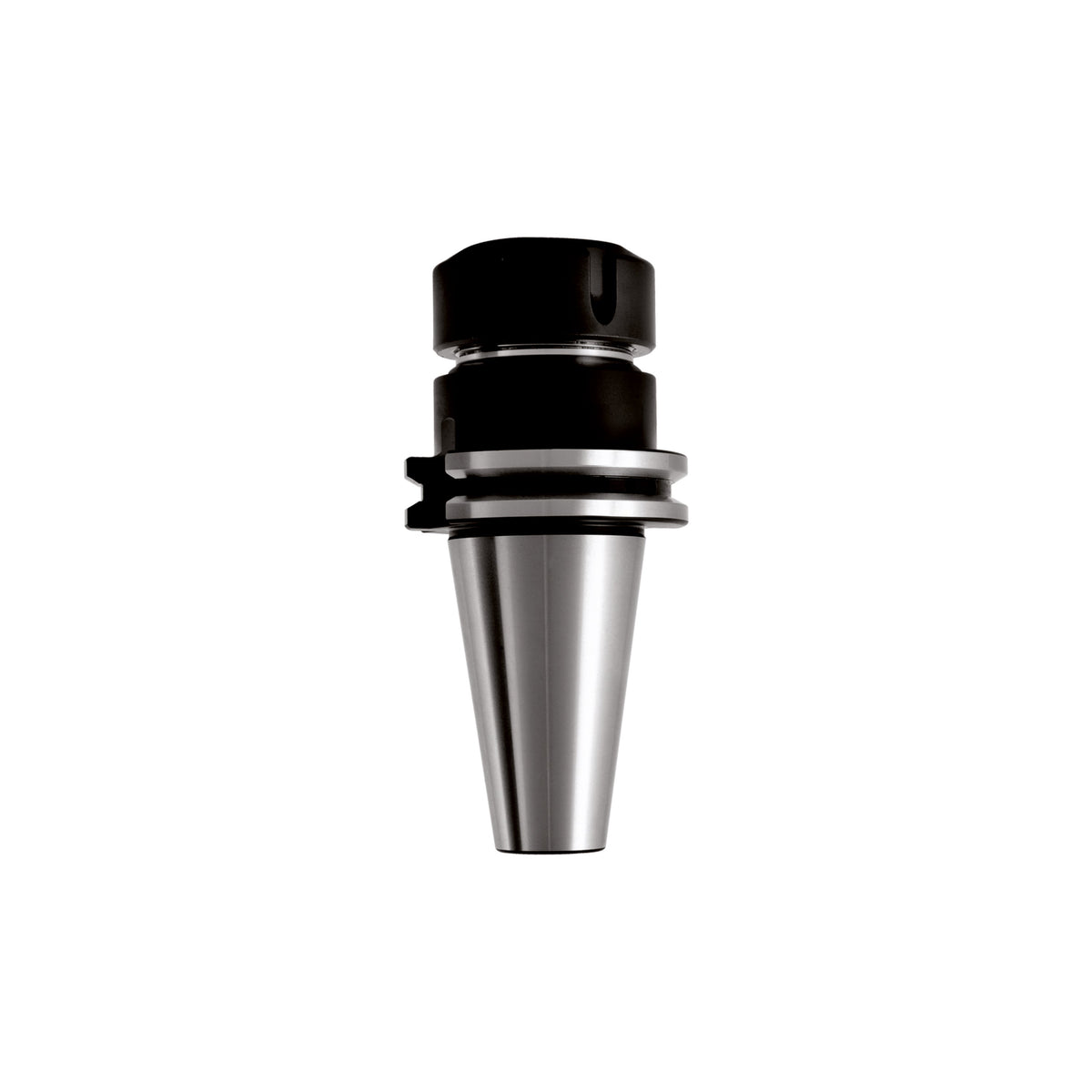

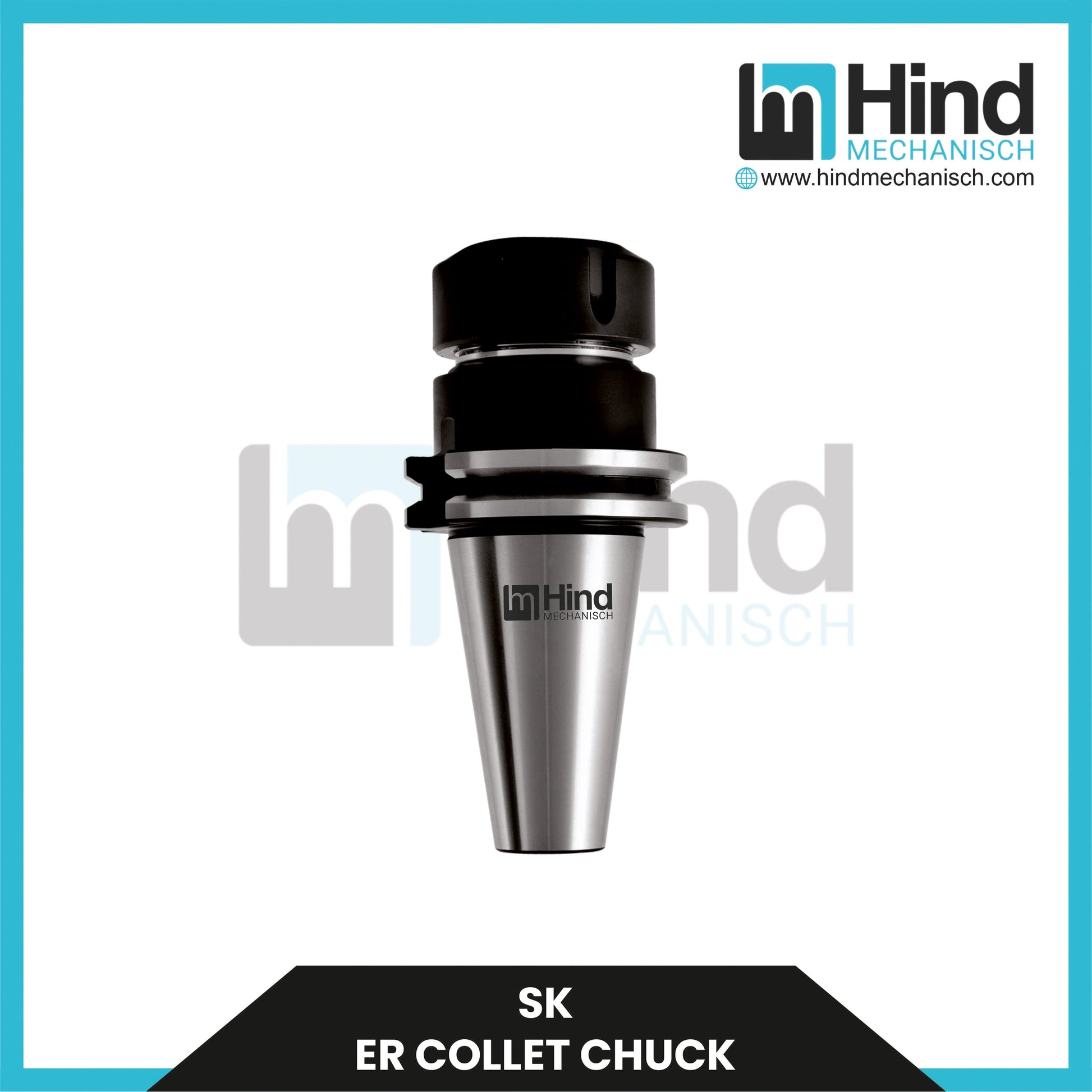

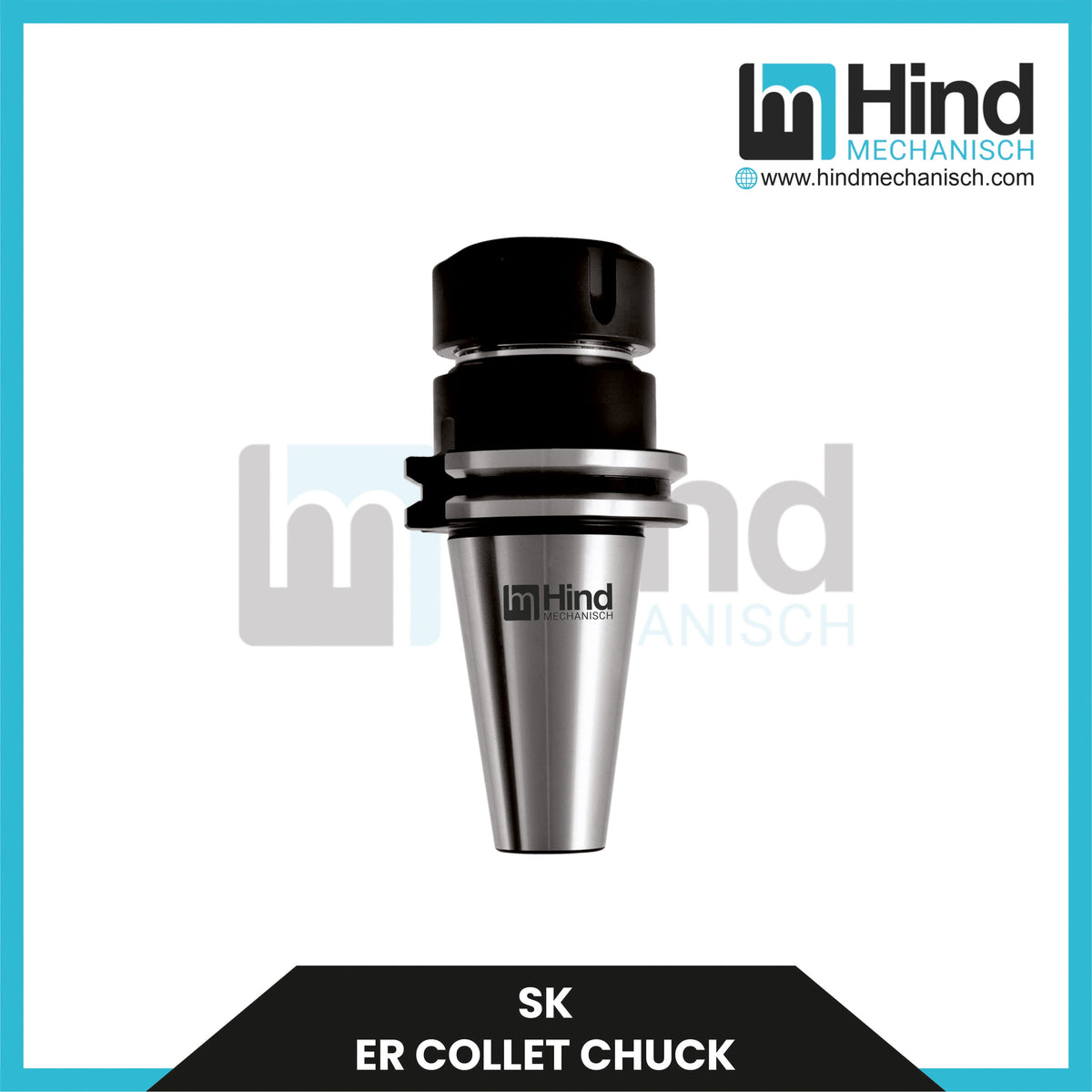

The SK40 ER Collet Chuck is a precision tool holder designed for secure and accurate clamping of cutting tools in CNC machining applications. Featuring the SK40 taper, this collet chuck ensures excellent tool stability and reduced runout, allowing for high-precision milling, drilling, and turning operations. With its ER series collet system, the SK40 ER Collet Chuck is suitable for a wide range of tool diameters, offering versatility and quick tool changes, ideal for high-speed and high-precision machining.

Key Features:

• Taper Type: SK40, conforming to DIN 2080 standards, offering a secure and stable connection for high-precision tool retention.
• Collet Type: ER series allowing for a wide range of tool diameters with quick interchangeability.
• Clamping Mechanism: Features a spring-loaded ER collet system with a clamping nut, ensuring firm retention of the cutting tools and reducing tool deflection.
• High Precision: Designed to minimize tool runout, ensuring tight tolerances and precise machining results.
• Quick Tool Change: Quick and easy tool changes to reduce machine downtime and improve productivity.
• Material: Constructed from high-quality tool steel, ensuring long-lasting durability, wear resistance, and rigidity under demanding machining conditions.

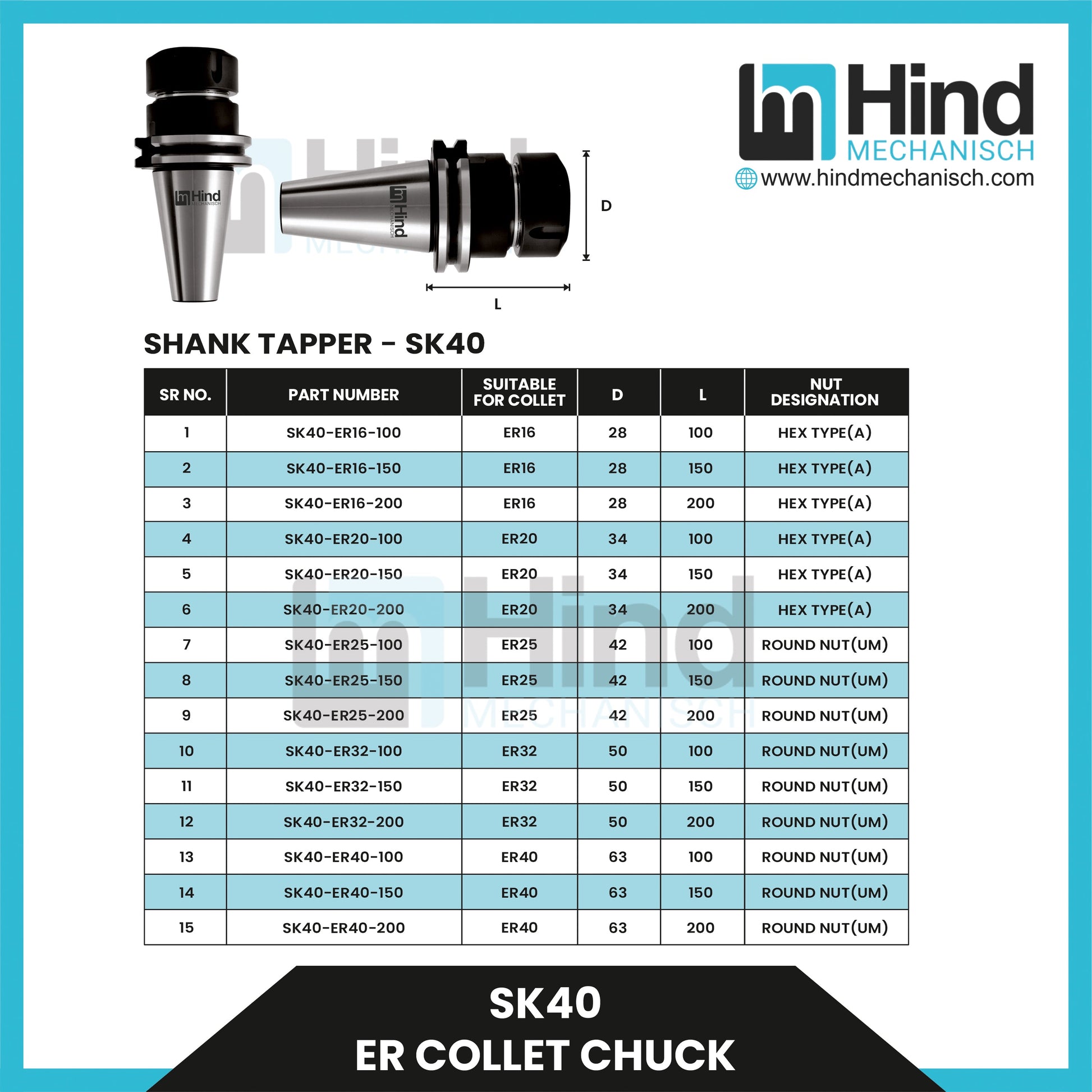

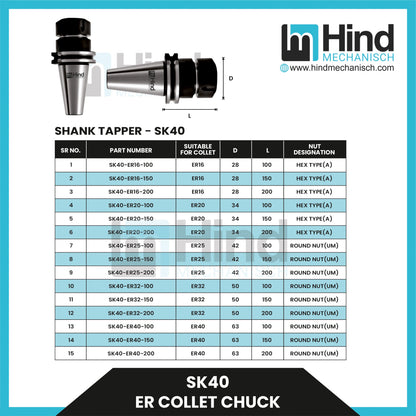

Technical Specifications:

• Shank Diameter: 40mm (SK40 standard)
• Collet Type: Compatible with ER collets allowing for versatile tool clamping.
• Clamping Force: Strong clamping force to minimize tool runout, ensuring accurate tool positioning and consistent cutting performance.
• Material: Made from high-quality tool steel, ensuring exceptional strength, wear resistance, and longevity.
• Length Options: Available in different lengths to accommodate various CNC machine setups and machining requirements.

Applications:

The SK40 ER Collet Chuck is ideal for a wide range of precision machining applications, including:

• Milling operations
• Drilling
• Tapping
• Slotting and profiling
• High-speed machining
• Suitable for use in CNC machining centers, CNC routers, and other precision machining equipment.

Advantages:

• Versatile Tool Holding: Supports a wide range of tool diameters with the ER collet system, providing flexibility for different cutting applications.
• High Precision: Ensures minimal tool runout and exceptional accuracy for tight tolerances and superior surface finishes.
• Quick Tool Change: Designed for fast and efficient tool changes, reducing downtime and enhancing productivity.
• Durable Construction: Made from high-quality tool steel, ensuring long-term durability and resistance to wear in demanding machining environments.
• Smooth and Stable Operation: Balanced to G2.5 for vibration-free operation, enhancing tool life and machining quality.
