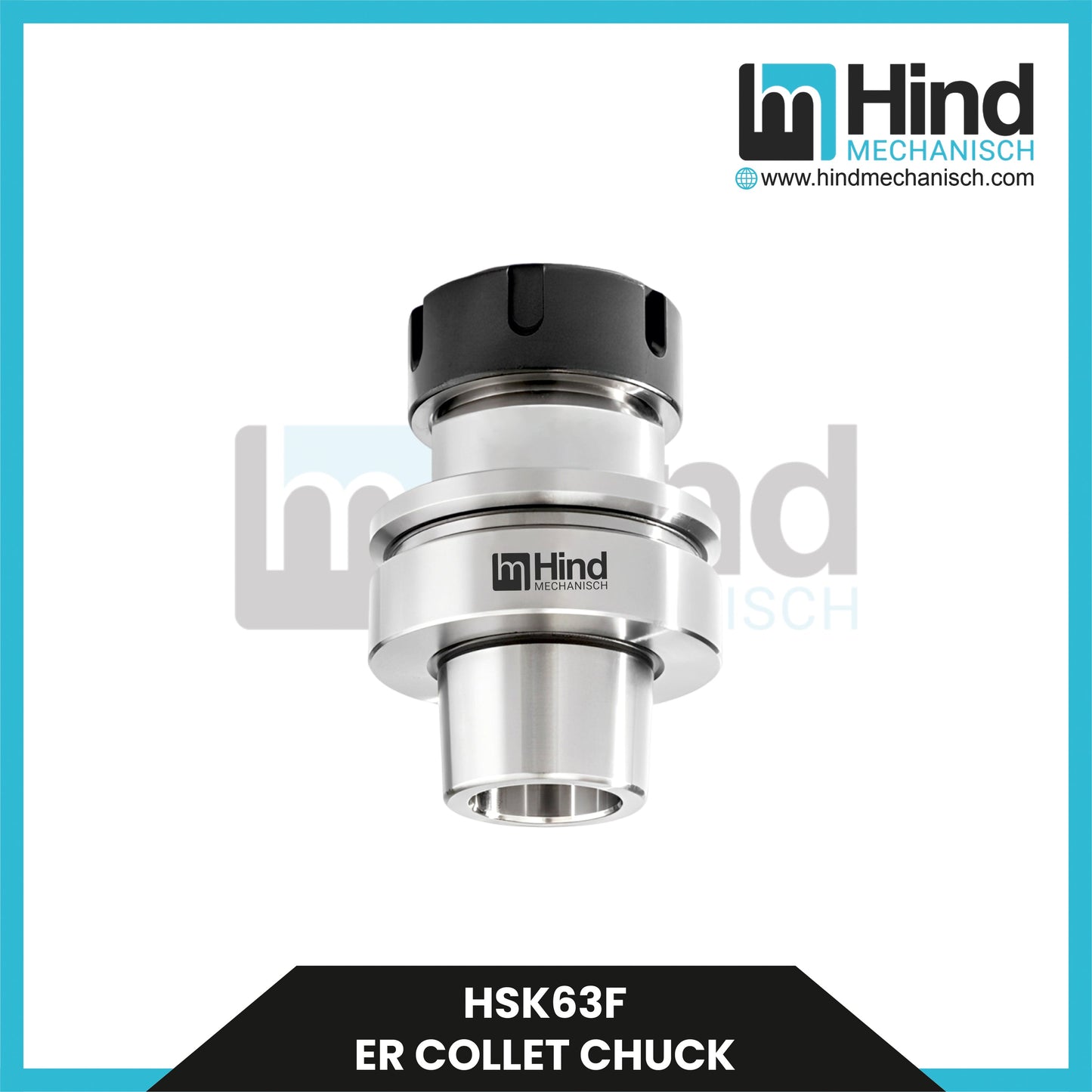

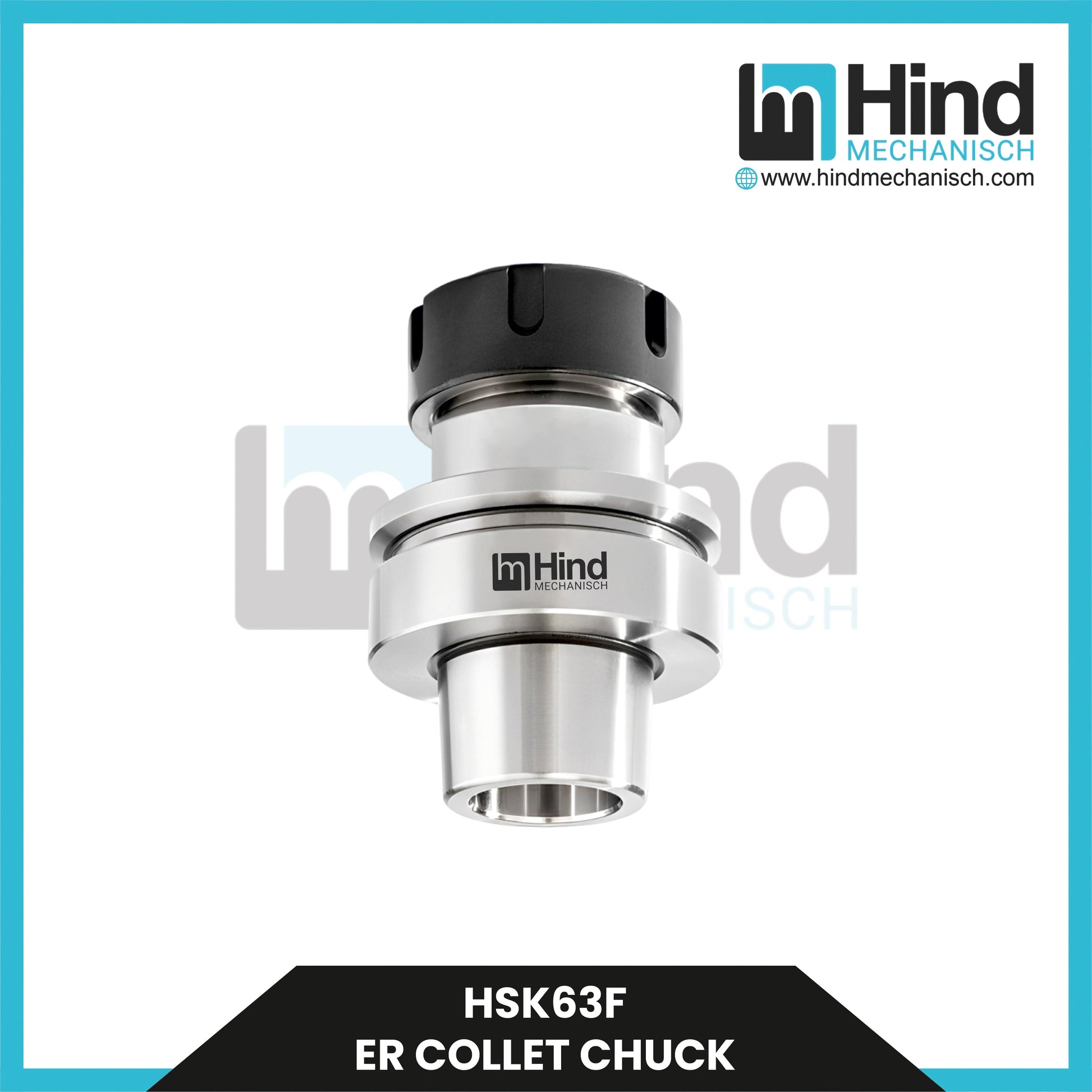

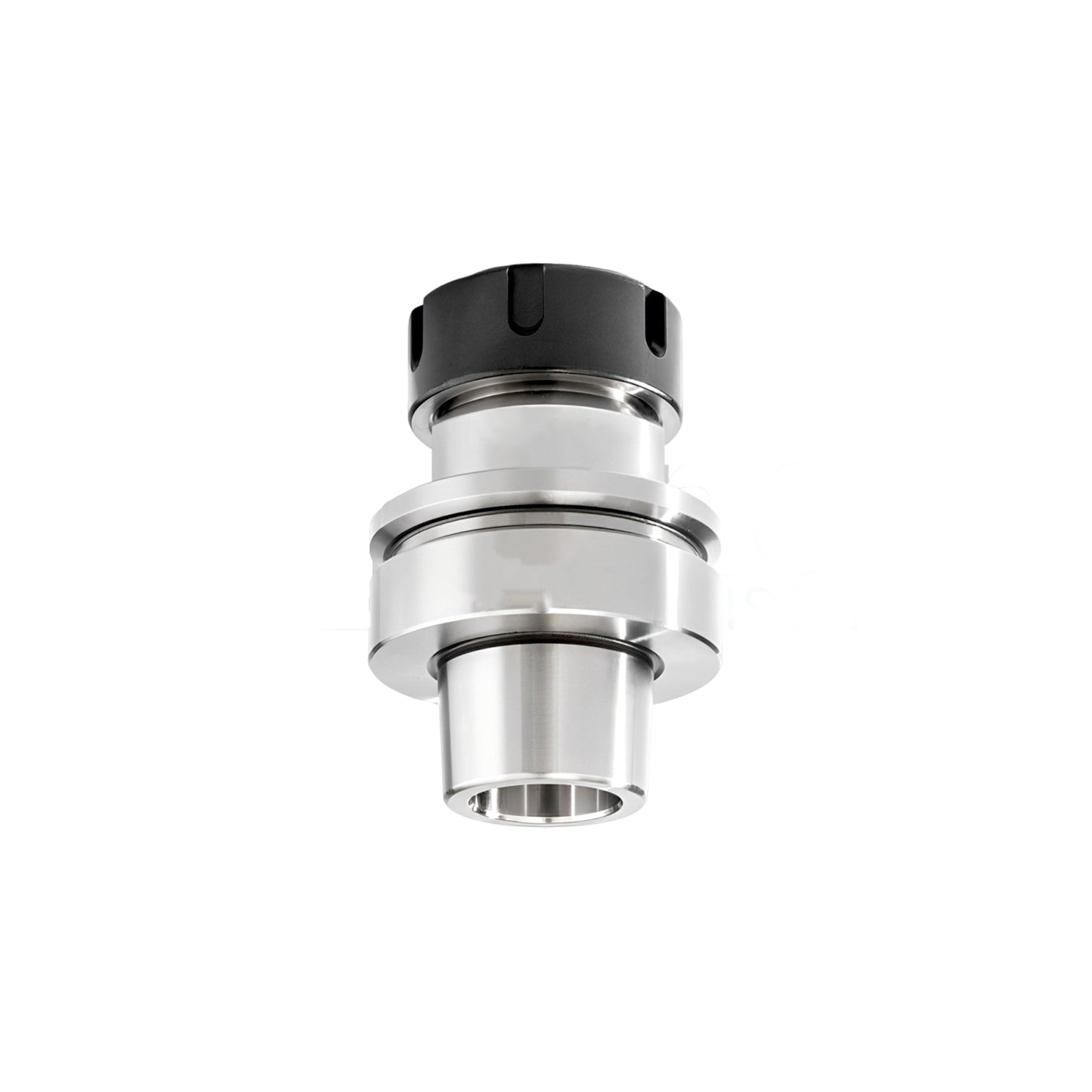

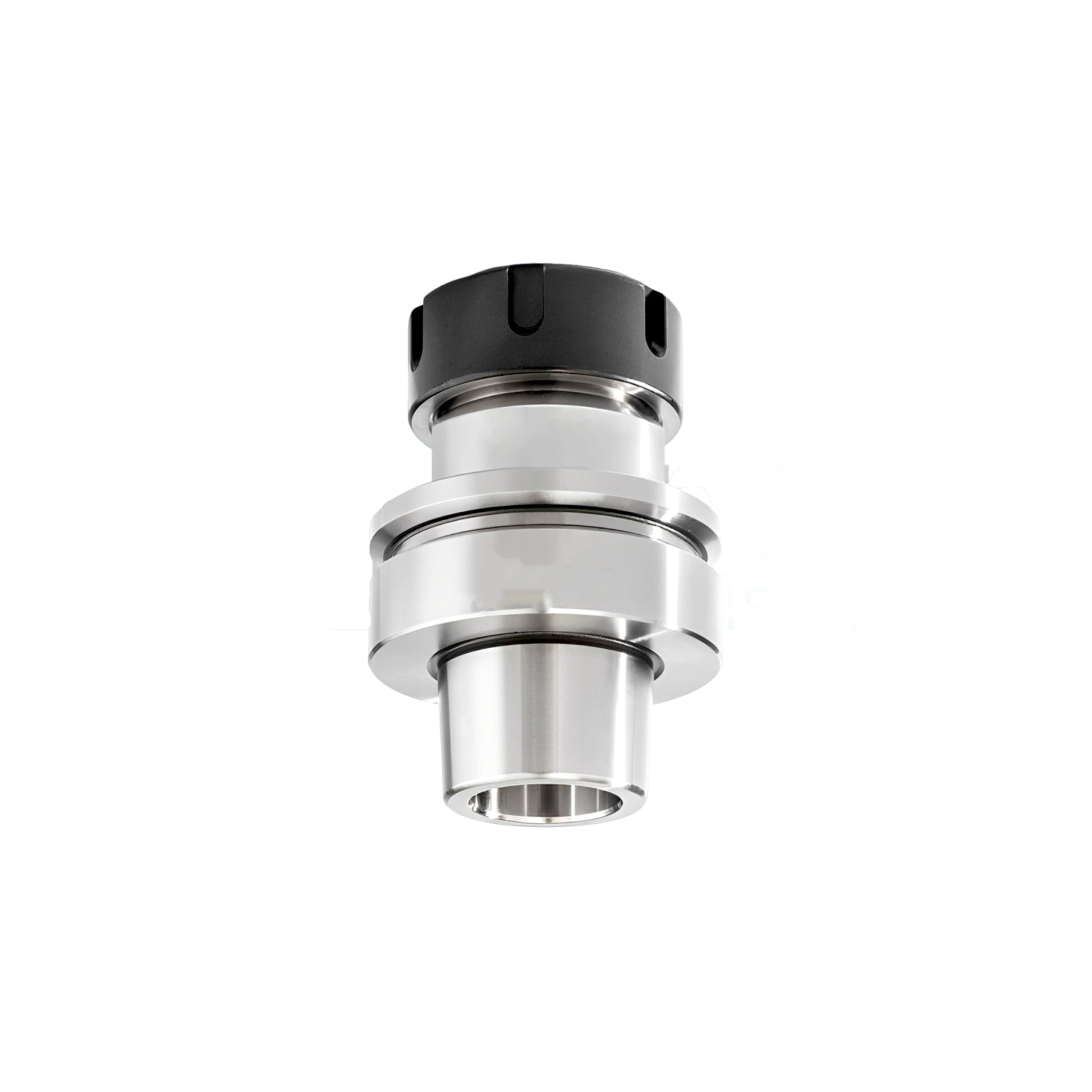

The HSK63F ER Collet Chuck is a high-performance tool holder designed for CNC milling machines, routers, and machining centers. Featuring a HSK63F taper shank in accordance with DIN 69893 standards, it is engineered to provide high precision, quick tool change capabilities, and exceptional clamping force for a wide range of cutting tools. Ideal for high RPM applications, this collet chuck is the perfect solution for demanding machining tasks requiring precision and reliability.

Key Features:

• Taper Type: HSK63F, conforms to DIN 69893 standard for consistent tool fitment and performance.
• Collet Type: ER series (e.g., ER32, ER40) allowing flexibility in clamping a wide variety of tool diameters.
• Clamping Mechanism: Spring-loaded ER collet system with a clamping nut for secure tool retention.
• Precision: High clamping accuracy, suitable for high-precision machining tasks.
• Quick Tool Change: Designed for easy and quick tool changes, reducing downtime and improving productivity.
• Material: Constructed from high-quality tool steel for durability, strength, and precision.
• Flats: 36mm for easy handling and secure gripping.
• Gauge Length: Available in various gauge lengths (A dimension) to suit different machining setups.

Technical Specifications:

• Shank Diameter: 63mm (HSK63F standard)

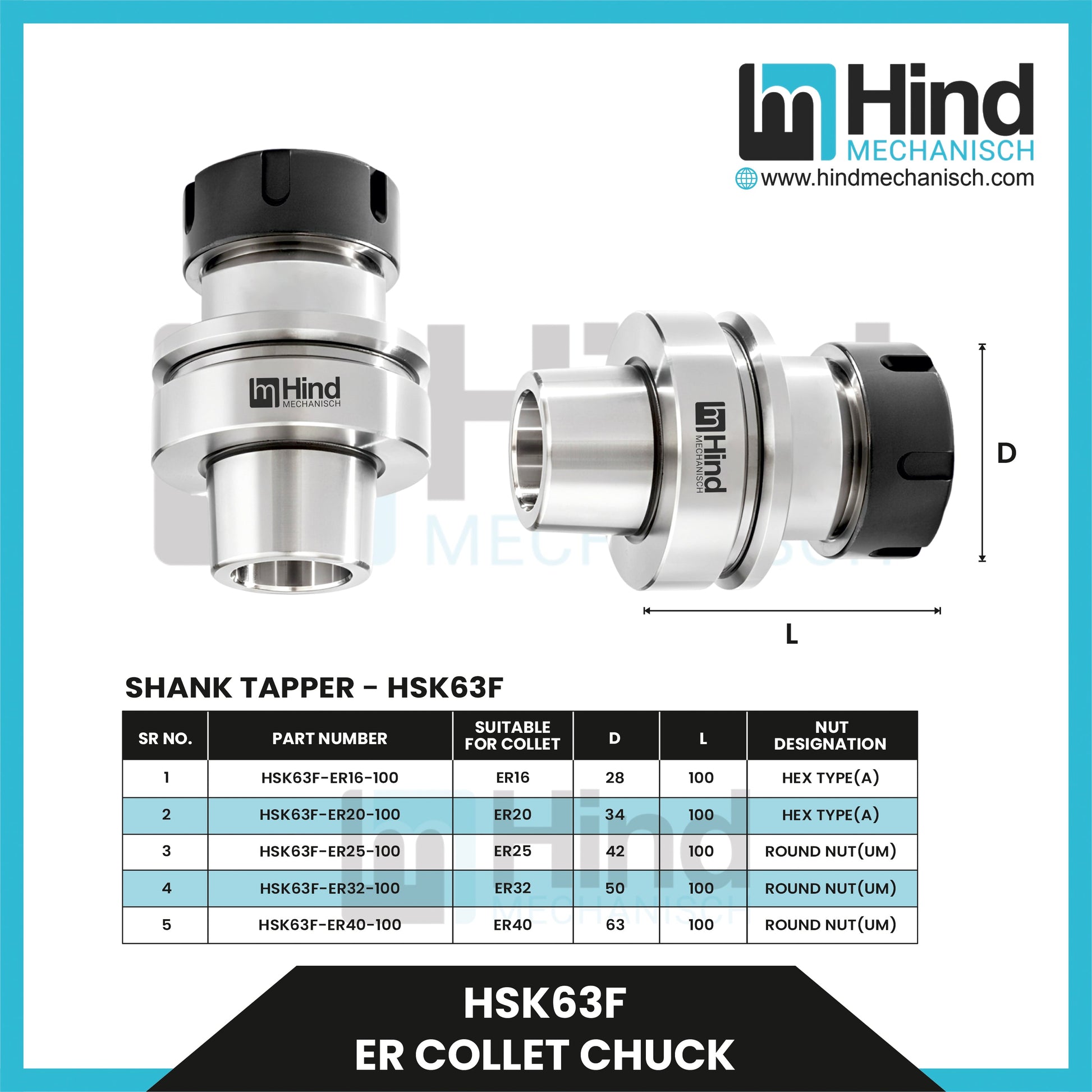

• Nose Diameter: Dependent on the ER collet size (e.g., ER32, ER40).
• Clamping Force: Varies based on collet size and design, ensuring strong and reliable tool retention.
• Balancing: The chuck is balanced to G2.5 standard to reduce vibrations and improve tool life at high speeds.
• Applications: Ideal for CNC milling machines, CNC routers, and machining centers where high-precision, quick tool changes, and high RPM are required.

Applications:

The HSK63F ER Collet Chuck is suitable for a wide range of CNC machining applications, including:

• Milling operations
• Drilling
• Tapping
• Turning
• High-speed machining in industries such as aerospace, automotive, and mold-making.

Advantages:

• High Precision: Excellent clamping accuracy for tight tolerances and improved surface finishes.
• Quick Tool Changes: Saves time and enhances productivity with minimal downtime.
• Versatile: Compatible with various ER collet sizes, making it suitable for multiple tooling requirements.
• Durable Construction: Made from premium tool steel, ensuring long-lasting durability and resistance to wear.
