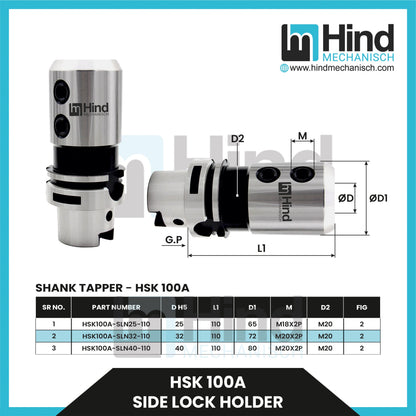

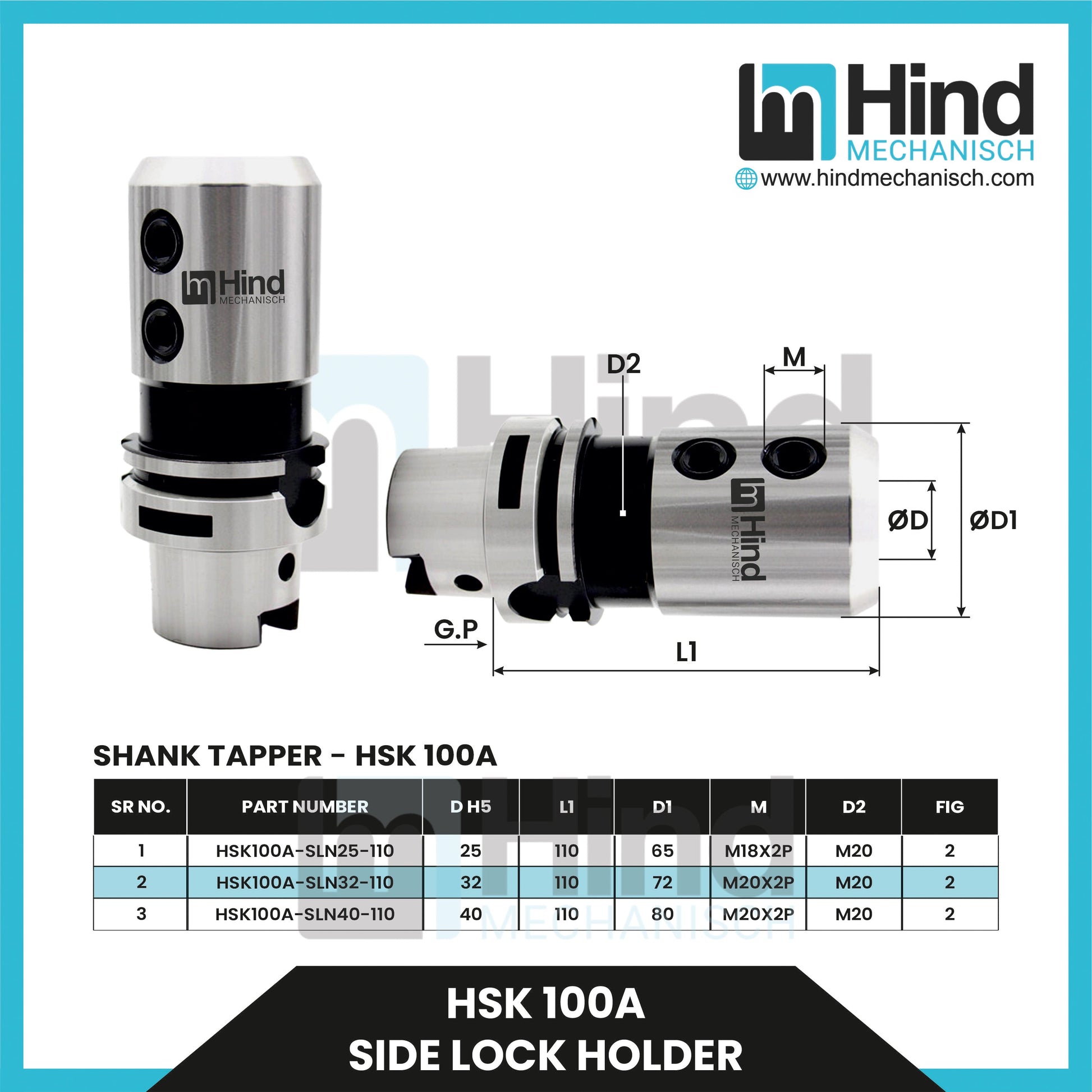

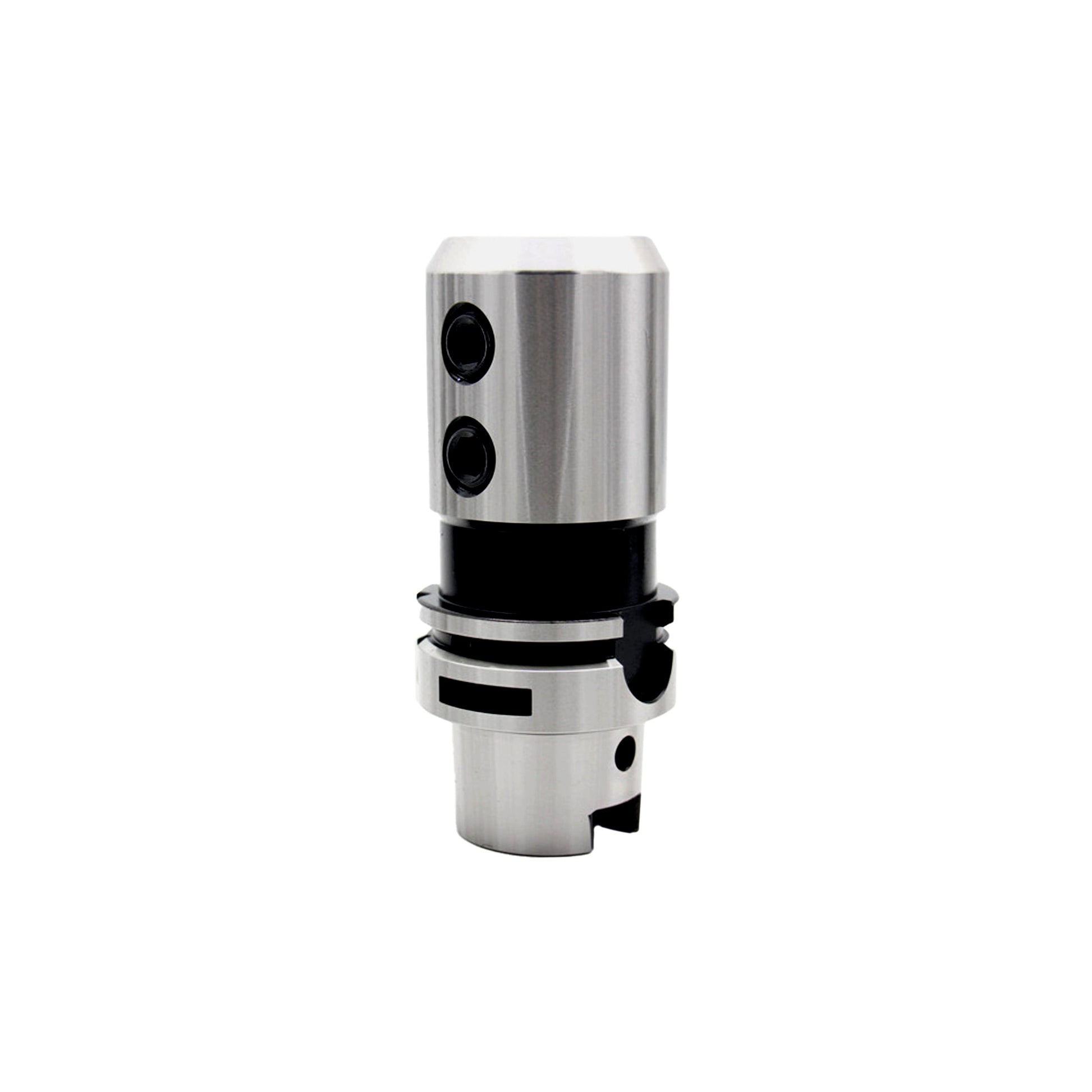

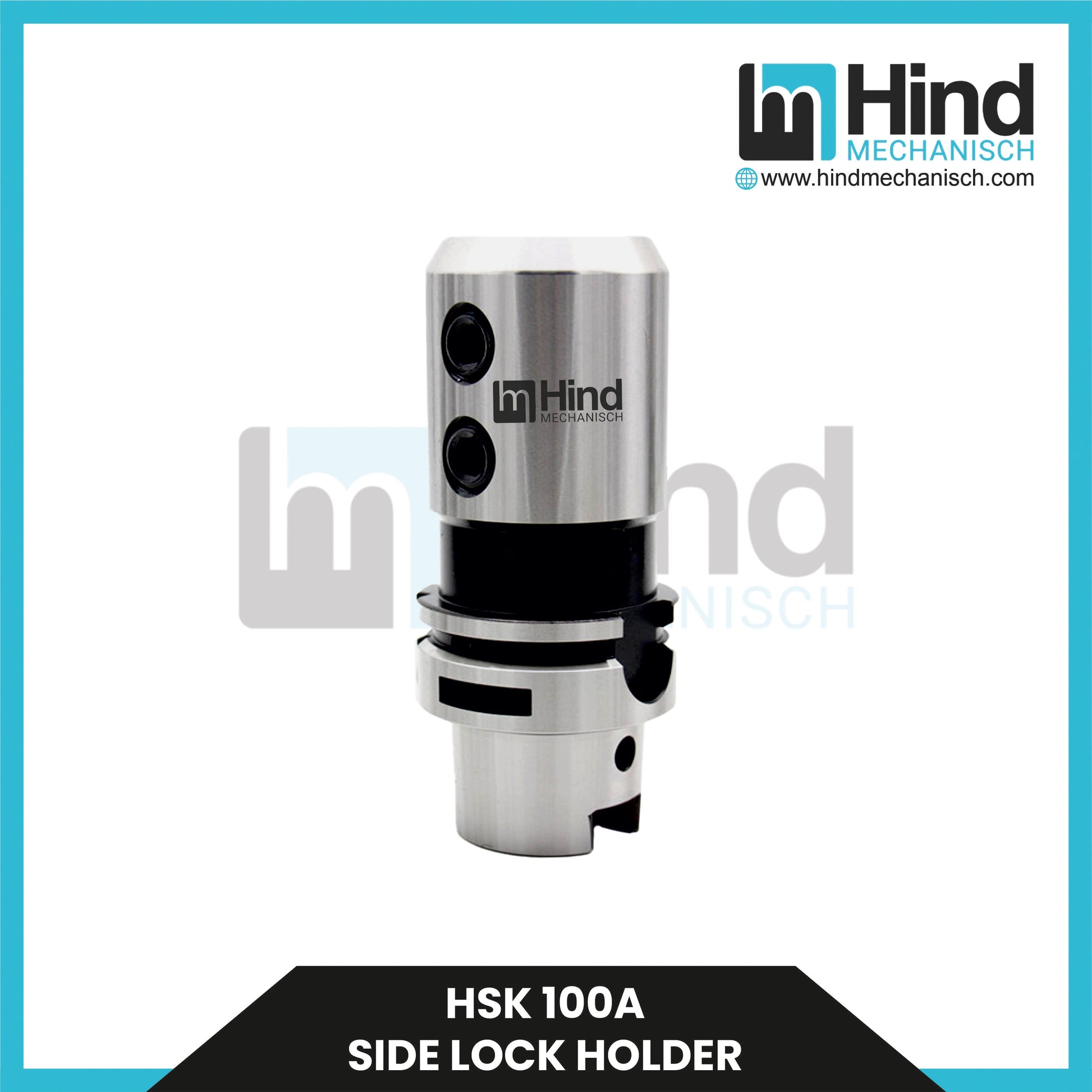

The HSK100A Side Lock Holder is a robust and reliable tool holder designed to provide secure tool retention for side milling, drilling, and other precision machining applications. Featuring the HSK100A taper shank, this holder ensures excellent tool stability and minimal runout, allowing for high-performance machining at both low and high speeds. The side lock mechanism ensures that tools are firmly locked in place, providing enhanced rigidity and accuracy, ideal for demanding CNC applications.

Key Features:

• Taper Type: HSK100A, conforms to DIN 69893 standards, offering high precision and secure tool fitment.
• Side Lock Mechanism: Designed with a side lock system for secure clamping of cutting tools, reducing tool deflection and improving machining precision.
• High Clamping Force: Provides strong clamping to ensure minimal runout and consistent cutting performance.
• Quick Tool Change: Facilitates rapid tool changes, reducing downtime and boosting productivity.
• Material: Manufactured from high-quality tool steel, ensuring superior strength and wear resistance.
• Balance Grade: Typically G2.5, suitable for high-speed operations with minimal vibration.

Technical Specifications:

• Shank Diameter: 50mm (HSK100A standard)
• Clamping Mechanism: Side lock system, providing secure and stable tool retention with minimal tool deflection.
• Material: Constructed from high-quality tool steel, providing long-lasting durability and wear resistance.
• Length Options: Available in various lengths to fit different CNC machine setups and machining needs.

Applications:

The HSK100A Side Lock Holder is perfect for a variety of precision machining applications, including:

• Side milling
• Drilling
• Tapping
• Slotting
• Profiling
• Ideal for use in CNC machining centers, routers, and high-speed milling machines.

Advantages:

• High Precision: The side lock system ensures minimal tool runout, improving accuracy and achieving tight tolerances.
• Quick Tool Change: Facilitates efficient tool changes, minimizing machine downtime and improving productivity.
• Versatility: Suitable for a wide range of cutting tools, including end mills, drills, and other rotary tools, making it ideal for various machining tasks.
• Durability: Made from high-quality tool steel for superior strength, ensuring long-term reliability and performance.
• Smooth Operation: Balanced to G2.5 for smooth, vibration-free operation at high speeds, enhancing machining stability and tool life.
