The CAT40 ER Collet Chuck is a precision tool holder designed to provide secure, reliable, and high-precision clamping of cutting tools in CNC machining operations. Featuring the CAT40 taper shank, this collet chuck is engineered for excellent tool retention, minimal runout, and stability during high-speed and high-accuracy machining. With the ER series collet system, it offers versatility in holding a wide range of cutting tools, making it ideal for applications that require quick tool changes and high performance in milling, drilling, and other CNC machining tasks.

Key Features:

• Taper Type: CAT40, conforming to ISO 7388-1 standards, ensuring a precise and stable connection between the tool holder and the machine spindle.
• Collet Type: ER series offering compatibility with a wide range of tool diameters and sizes, providing flexibility in machining operations.
• Clamping Mechanism: Spring-loaded ER collet system with a clamping nut ensures firm retention of cutting tools, reducing tool deflection and maintaining accuracy.
• High Precision: Designed for minimal tool runout, ensuring tight tolerances and consistent cutting performance, even at high speeds.
• Quick Tool Change: Allows for fast and easy tool changes, minimizing machine downtime and increasing overall productivity.
• Material: Constructed from high-quality tool steel, providing exceptional durability, wear resistance, and strength under demanding machining conditions.

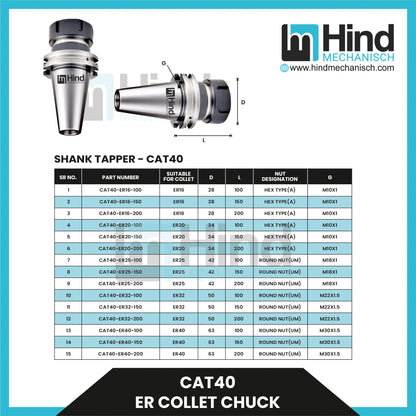

Technical Specifications:

• Shank Diameter: 40mm (CAT40 standard)
• Collet Type: Compatible with ER collets  offering a wide clamping range for various tool diameters.
• Clamping Force: High clamping force to securely retain cutting tools and minimize runout, enhancing cutting performance and accuracy.
• Material: Made from high-quality tool steel, ensuring durability, strength, and resistance to wear.
• Length Options: Available in various lengths to fit different CNC machine setups and machining requirements.

Applications:

The CAT40 ER Collet Chuck is ideal for a wide range of precision machining applications, including:

• Milling operations
• Drilling
• Tapping
• Slotting and profiling
• Suitable for use in CNC machining centers, CNC routers, and other high-precision machining equipment.

Advantages:

• Versatile Tool Holding: Compatible with a wide variety of tool sizes, thanks to the ER collet system, providing flexibility for various cutting tasks.
• High Precision: Ensures minimal tool runout and tight tolerances, providing accurate and high-quality surface finishes.
• Quick Tool Change: Facilitates fast tool changes, reducing downtime and improving machine productivity.
• Durability: Made from high-quality tool steel for excellent wear resistance and longevity in demanding machining environments.
• Smooth Operation: Balanced to G2.5 for vibration-free operation at high speeds, ensuring stable and precise cutting performance.
